soup tin stirling engine


The very first stirling engine I made hardly worked at all: it would spin one way slightly easier than the other, but that was the only sign of life. It wasn't until I found Saburo Tsucchida's page that I finally made some progress. The reason was that I now understood how it was supposed to work, whereas before I had made one without understanding what I was making.
I devised an experiment which was the key to my ultimate success: I made a closed cylindrical paper box which fitted loosely inside a soup tin and was about half the height. Then I stretched a balloon over the open top of the tin & held the bottom over a candle flame with my index finger gently touching the middle of the ballloon. When the bottom of the tin was hot I turned the tin upside-down, then right way up, then upside-down again so that the paper box fell up & down inside the tin.
I could feel the balloon expand & shrink with my finger because of the displacement of the air from the cold to the hot end of the tin and back again. Because I could actually feel the force that was supposed to be driving the crank I understood what I had to do to make the engine work.

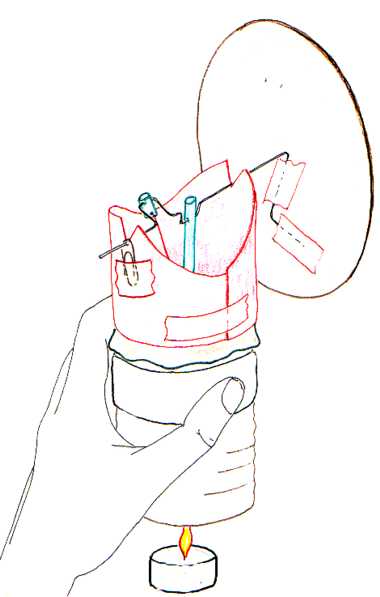

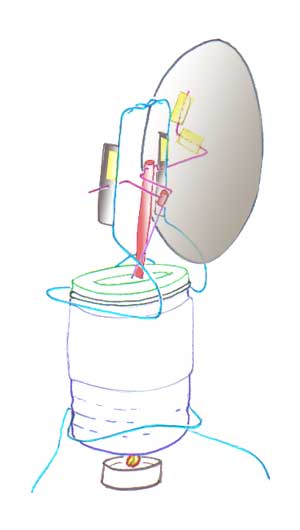

This is an engine which was the direct outcome of my experiment.



It will go at 50-90 rpm depending on the state of the night-light, faster with more night-lights, alternatively it will work with a 60 watt spotlight held near the base. It is cooled by a water-soaked paper towel wrapped round the tin. The large cardboard flywheel enables it to run at very low revs whilst subjecting the cardboard bearings to very little stress. Although cardboard would at first seem an implausible material for a flywheel in fact it is very good because it has a very high inertia for a low weight.

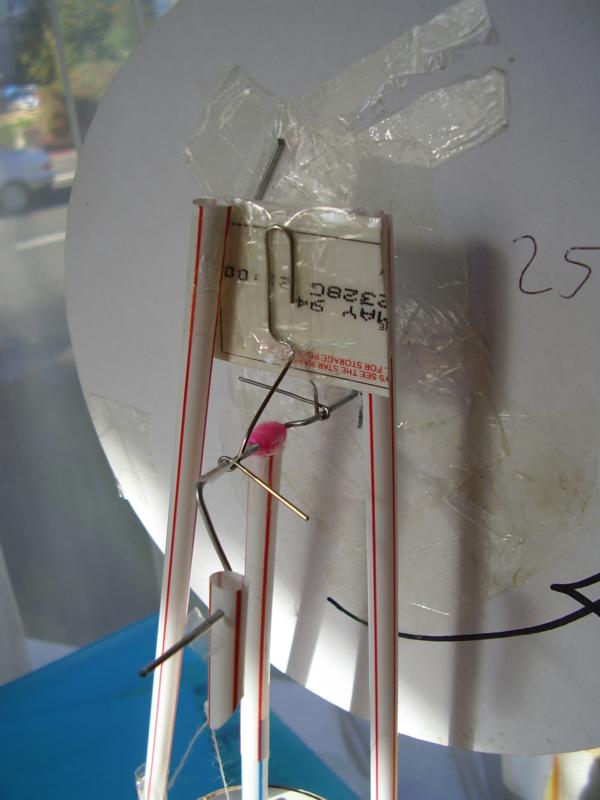

The engine is supported by a bent wire clip, although you can hold it by the paper towel if you don't want to make a support. A similar wire clip holds the crankshaft bearings which are simply holes in slips of card taped to the clip. The clips grip the grooved side of the tin.

Perhaps the first part to make is the displacer; you can make it out of paper however in the diagram I have shown it made from wrapping foil. Wrapping foil is much more delicate than paper. It isn't like a piston in a cylinder, all it does is displace the air from one end of the tin to the other and back again. So its fit in the tin is not in any way critical, it just has to be able to move up and down without jamming. If the top is made slightly indented you can use your finger and thumb to squeeze the glued surfaces together. More detailed instructions are at the bottom of the page.
The con rod is made from a bit of drinking straw with a pinhole for the big end bearing; the little end bearing is made by squeezing a tab of sellotape over the end of the straw. Just lately I found a way of doing it without a little end bearing ie with the connecting rod attached rigidly to the washer.
The displacer is moved by a bit of invisible mending thread tied to a string hanger; the string hanger is made from another bit of drinking straw.

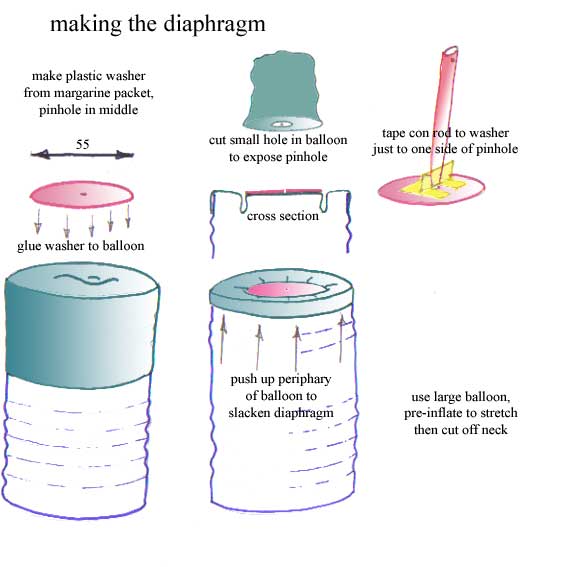

The diaphragm is made from a (not very) large party balloon with a washer glued to it; the washer has a pinhole which serves two purposes: to enable the thread to move the displacer and to equalise the pressure inside & outside the tin. It does this much too slowly to interfere with the cyclic pressure change in the tin.
The balloon should be pre-inflated to stretch it then placed over the top of the tin so that the center is flat but not stretched. The washer is cut from thin card or a plastic margarine packet. After making the pin hole it is glued to the balloon; I used super-glue but other glues might also work. The periphary of the balloon should be pushed up the side of the tin so that the washer is held by a completely loose collar of rubber. Before doing this the diaphragm must be removed from the tin to cut away the middle of the balloon and expose the pinhole. The thread can now be passed through from the displacer to the string-hanger and the diaphragm replaced.
Tying the thread to the string hanger is very fiddley, you have to get the length just right so that the displacer moves up & down without jamming at the top or having undue slackness at the bottom.
The diaphragm is the most critical component and deserves a lot of attention, the rest of the engine will probably be OK if the diaphragm works. A balloon is of course a very worthwhile plaything in its own right and sacrificing one to make a stirling engine may not necessarily be the wisest choice. If you don't have a balloon, you can make the diaphragm out of thin polythene, in this case stretch it tight as you would make a top for home-made jam. Stick the washer to it with a thin bead of sellotape. The polythene will have enough flexibility to allow the washer to move up & down. This isn't as efficient as the balloon diaphragm, it requires two night lights to make it run. However it removes the costliest component (the balloon) and it is easier to make.

I strongly recommend reading Koichi Hirata's instructions for doing this as they are much more exhaustive than mine, I have just modified them so that it can be made with very few tools or skills; I changed his method for making the diaphragm, which involved reducing the throw of the crank from his 8mm to my 3mm, also his method for making the displacer. I found that the engine works with only one con rod in the middle of the washer because the thread can be pulled by the string hanger at a slight angle; otherwise the designs are the same.
The engine will only run in one direction: the string-hanger crank leads the con rod crank by 90 degrees.

why doesn't my stirling engine work?

Because the throw of the con-rod crank is too big, this causes the flywheel to try and drive the diaphragm. I found it works quite well with a crank throw as little as 2mm, however because it's so difficult to make it so small you can achieve the same thing by simply making the flywheel-end crankshaft bearing an open V shape, the crankshaft just rests in it & lifts out of it briefly on each rotation, but I don't think this takes any energy out of the system. Anyway it stops the crank jamming against the diaphragm.
Because this reduces the bearing forces to nothing at all it means you can make the whole top end out of a piece of folded card; it's much easier to fit the crankshaft because it just rests in two 'V' notches, you can constrain one end with a paperclip sellotaped to the card. A polythene diaphragm is now just as efficient as one made from a balloon because the floating crankshaft bearing does what the elasticity of the balloon was doing. So you don't need to use superglue.

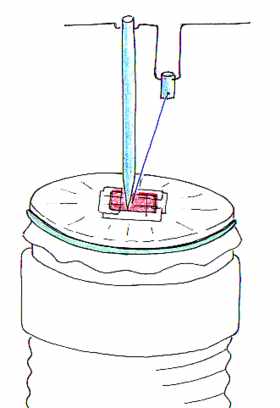

If the washer is made about one inch square it is very easy to sellotape it to the polythene. This works better than a larger washer, also because there is a lot of space round the edges you can watch the displacer going up & down if you use transparent polythene. The polythene should be a bit slack.
As the stirling engine heats up the amount by which the air expands and contracts changes. So ideally the crank should have a variable throw, and the loose bearing seems to achieve this. Incidentaly this is the same reason why Newcomen steam engines were only very seldom used to drive rotating machines

It starts much quicker if you use a coke can instead of a soup tin, because the metal is about one-quarter the thickness.
If you use a coke can you then have the problem of cutting the top off the can, if a jagged edge is left this will puncture the diaphragm. It also weakens the top of the can which makes fitting the diaphragm a bit difficult.
It's a good idea to make the big-end bearing out of a plastic bead, you can attach the connecting rod to it with sellotape. The force on the big-end is quite large so it's a significant source of friction.
I've had a lot of trouble with the polythene leaking, even a small leak will reduce the engine's power or stop it working at all. There are two causes of leaks: the first one is the top of the coke can where you've cut the metal remains jagged and unless you cover it with sellotape you get holes. The second one is leaking past the rubber band. When you've taken the polythene off about twenty times the sellotape starts to accumulate on it and make it too stiff for the rubber band to create a seal. You can sometimes spot this because the fumes from the candle get sucked under the polythene into the tin and form condensation inside.
You can increase the rpm by reducing the stroke of the displacer, although this also reduces torque so I don't know if you get any overall increase in power. The thing is you can quickly do meaningful experiments of this kind.
I think it helps to insulate the base of the displacer with about two fluffed-up cotton buds. Just put them inside before you glue the top on.

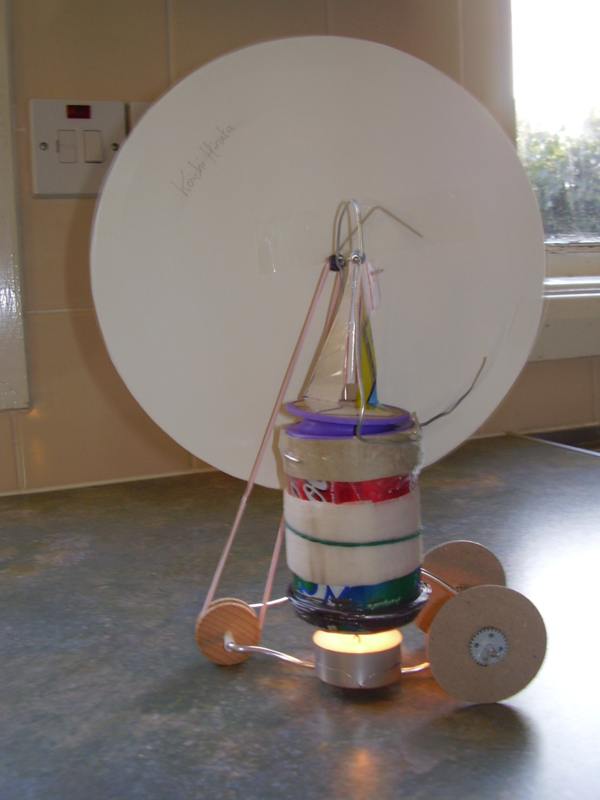

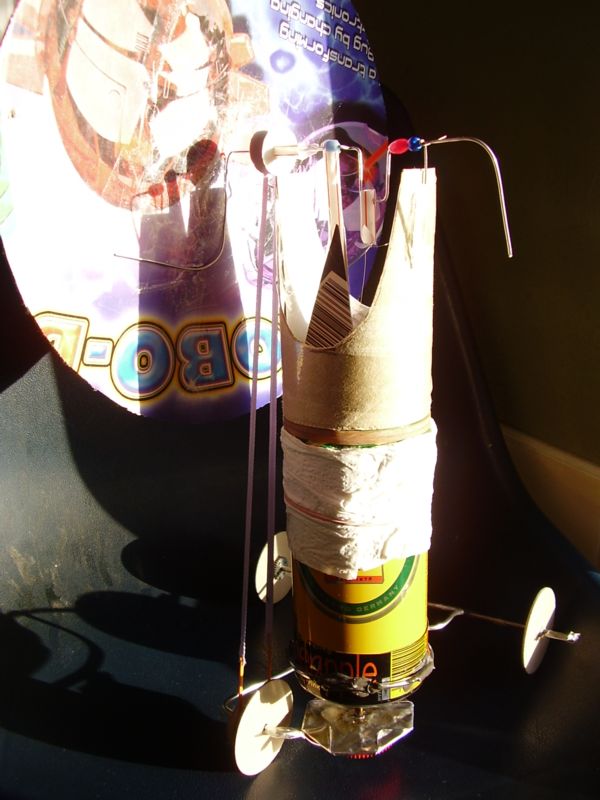

This is a loco made with a 500ml aluminium can, the displacer is 90mm high with a clearance of about 2mm. The washer is 35mm diameter. It doesn't go very fast
This is the chassis, it's made from a bit of bent aluminium wire

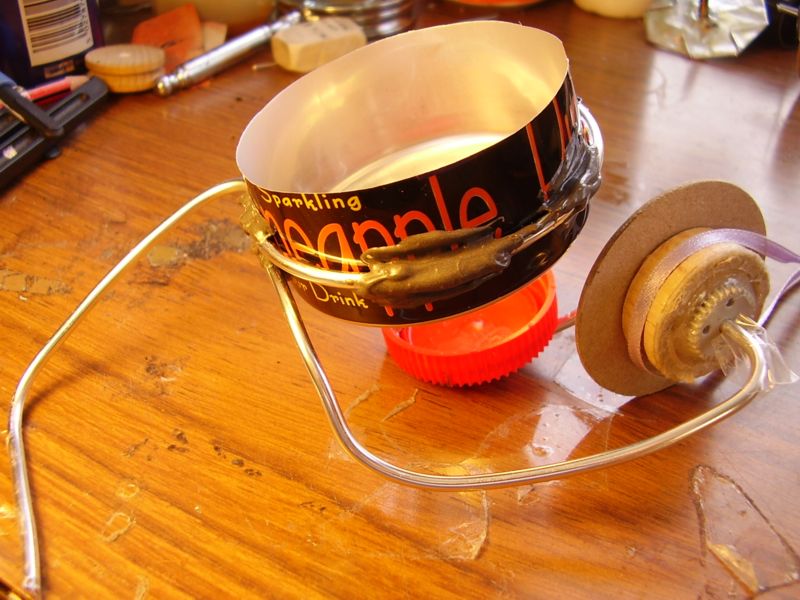

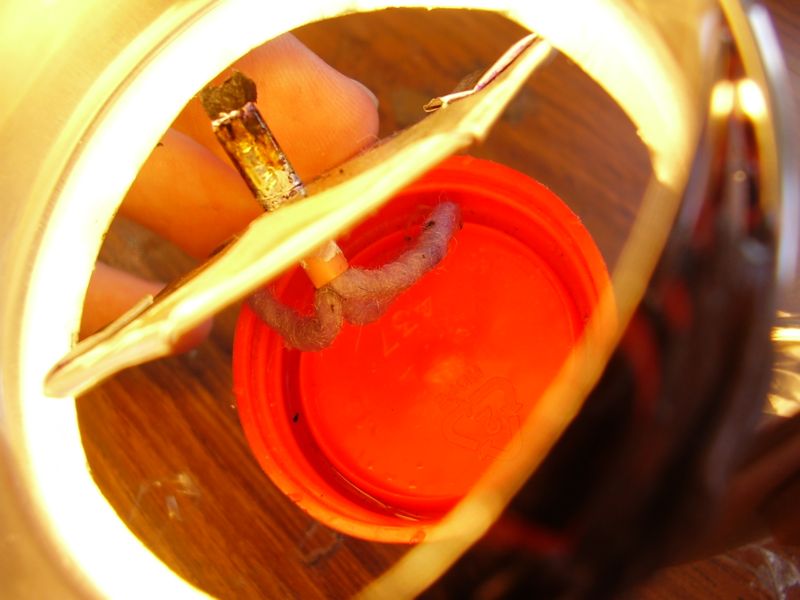

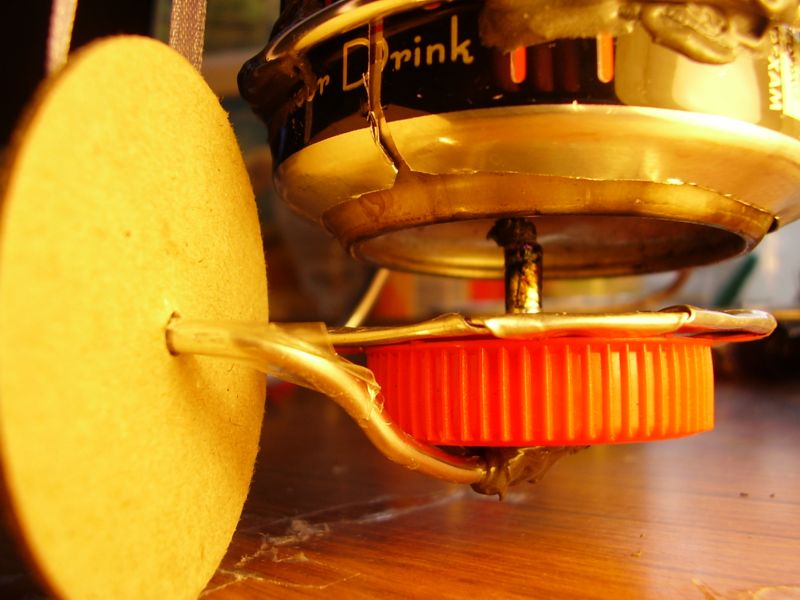

it has a holder for the engine made from a coke can, a driving pulley and a bottle-top burner. This shows fitting the meths burner

This is a side view of the assembled burner with the engine in the holder

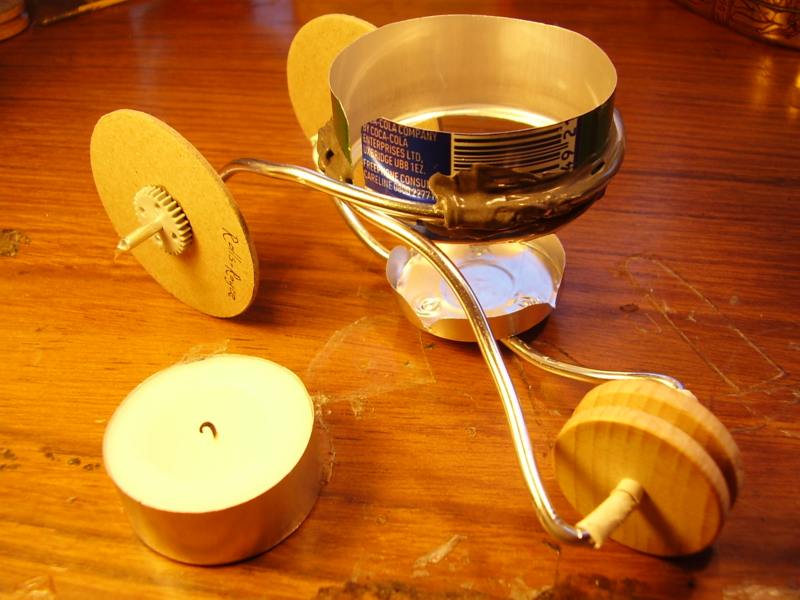

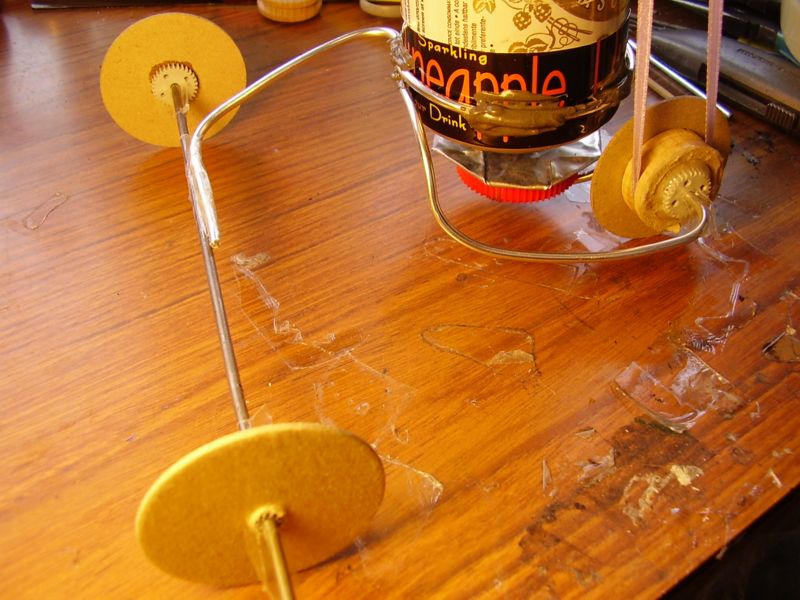

This shows the axle and wheels sellotaped to the bent wire & driving band made from a length of ribbon

This is a detail of the top end of the driving band, it is spliced with a short length of rubber band to keep it in tension

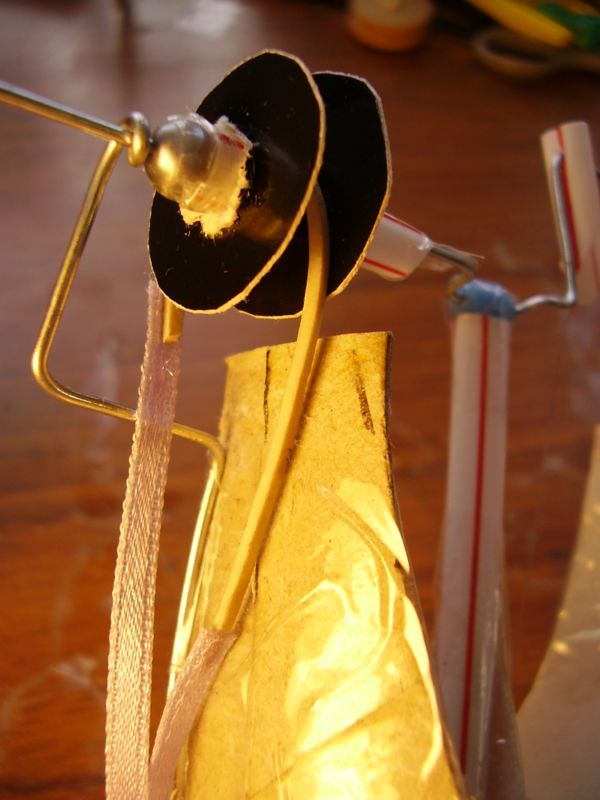

The bearing point is between the pulley and the flywheel, this is so that the weight of the flywheel and the tension of the driving band tend to balance each other.

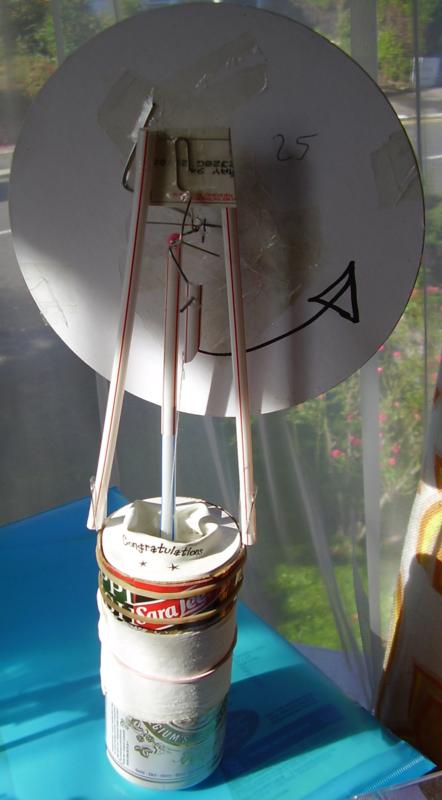

This is one made from a mini coke can

It's a lot neater. The displacer only has a 10mm stroke, it is only about 15mm shorter than the tin. I have recently found it's better to use a narrow 250 ml soft drink can (ie this diameter but taller). See further down the page.




This is my latest design, it's much simpler to make



here with more efficient diaphragm running on the heat from boiling water

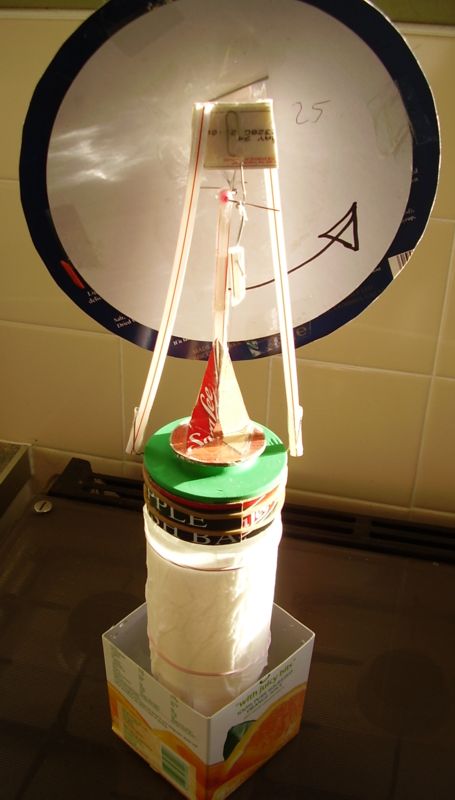

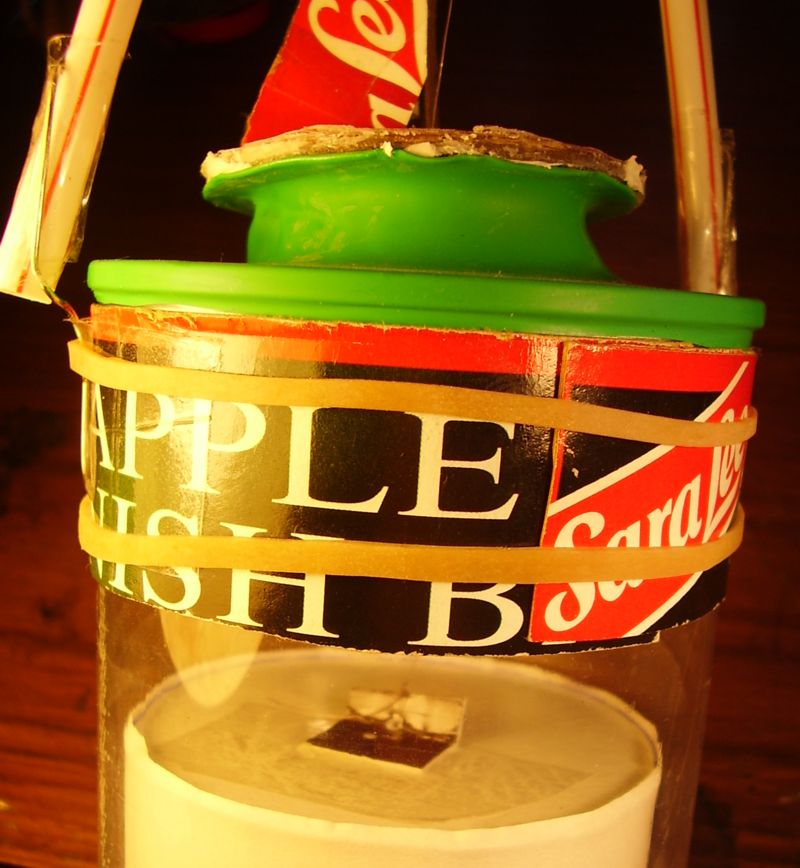

Here made with a plastic bottle - in fact it's a tennis ball container with a reinforced rim

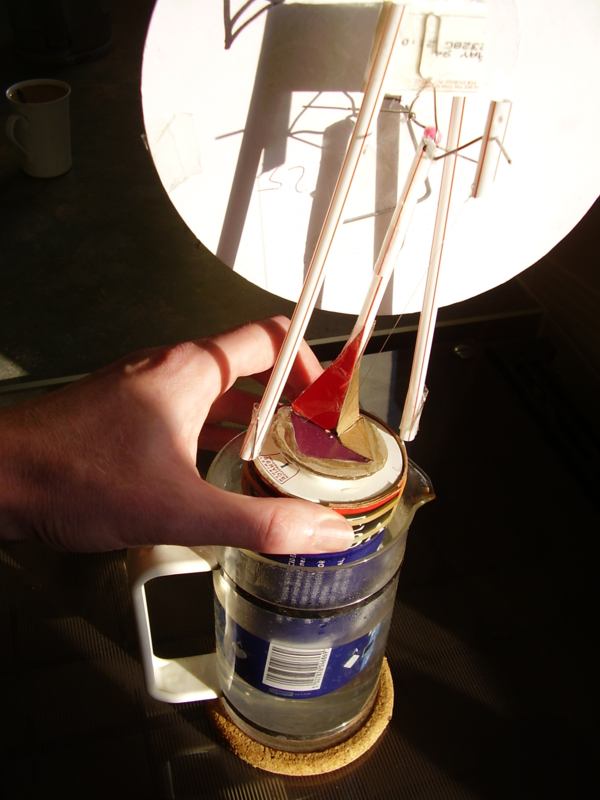

The orange juice box contains the hot water. I found it would run at 50 degrees if I cooled the paper towel with an electric fan. 55 degrees without the fan. The plastic begins to distort at about 80 degrees centigrade.
This is a detail of the efficient diaphragm. You can see the top of the displacer inside the bottle

More efficient one using two 2-litre plastic bottles slightly different diameters to form air-tight seal, coke-can mechanism glued into top

It needs a temperature difference of at least 30 degrees celcius between the bottom & the top, you can do this by putting either hot or cold water round the bottom. If you use cold water you have to add salt to ice to achieve minus 10 degrees. I found an easy way to do this is scrape ice off the inside of a freezer with the rim of a metal thermos flask, then add a lot of salt and some water. Don't fill the flask completely. Now put the lid on & shake vigorously; the resulting salt/slush mixture should be cold enough to work the engine. The engine runs backwards if you use cold rather than hot.

more recent version on YouTube, needs much lower temperature difference, doesn't need salt with the ice




making a displacer out of paper


The first bit of the engine to make is the displacer. Make a former out of a mini coke-can with card & paper wrapped round to give the correct diameter.

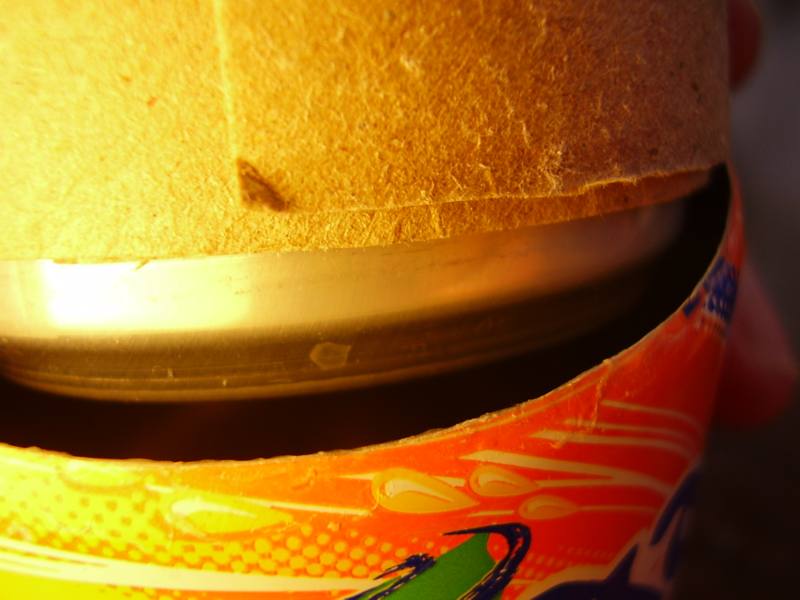

This shows checking the diameter of the former

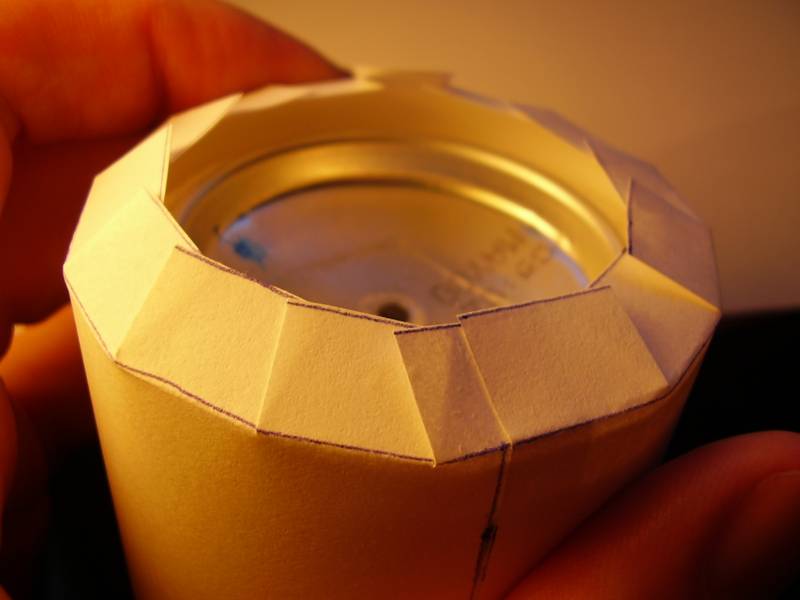

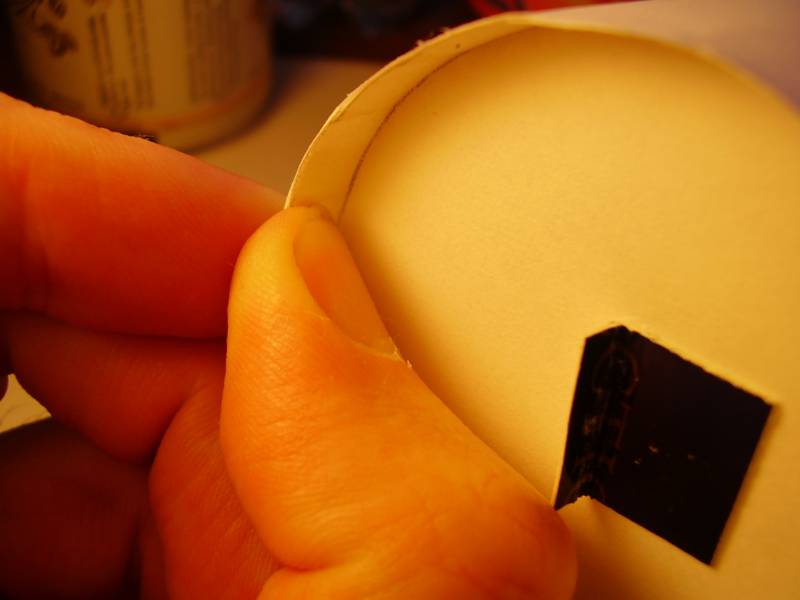

Use the former to make a paper cylinder: cut a fringe round one end & fold inwards

glue on a paper disc

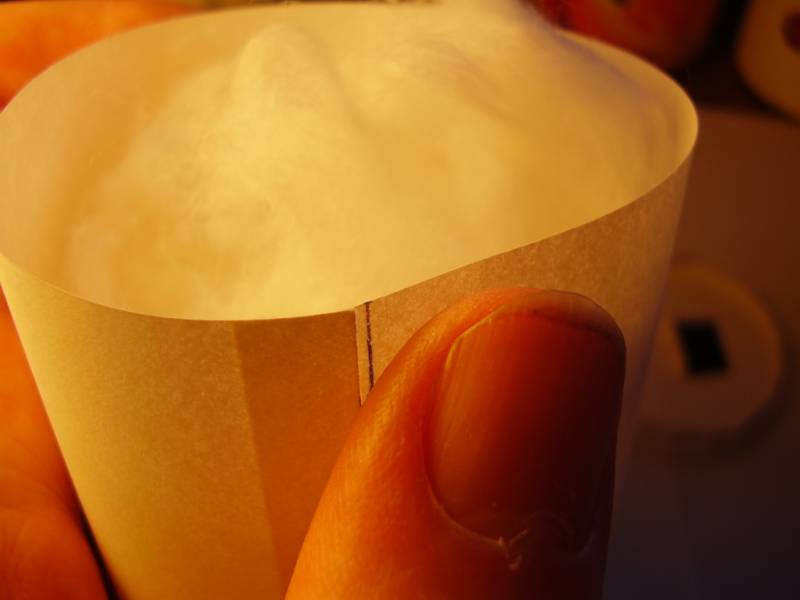

remove the former & fill the cylinder with three fluffed-up cotton buds

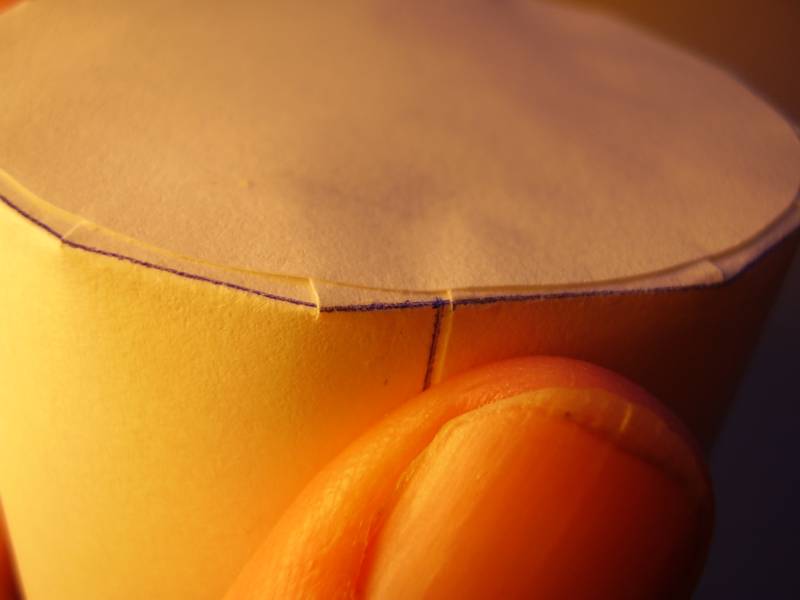

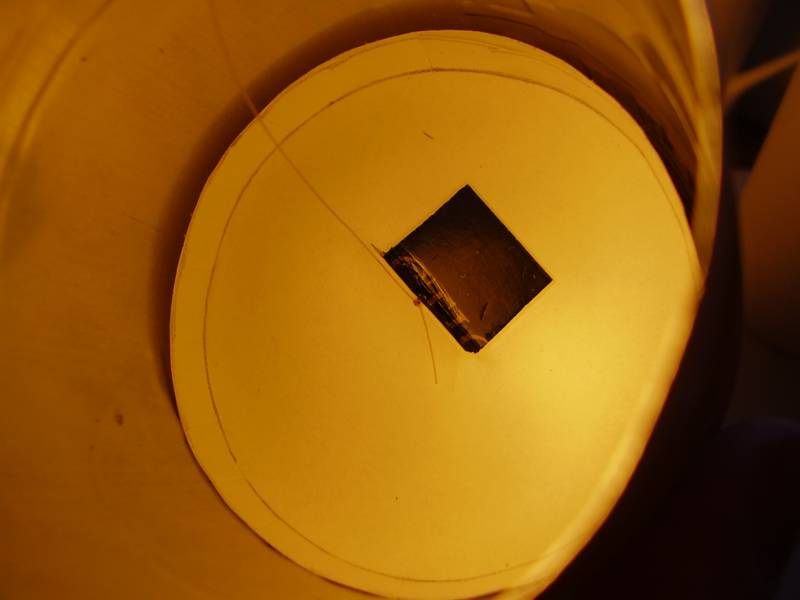

make a top end out of a paper disc with folded-up fringe, glue in place with PVA

view of completed displacer inside tin. Note cardboard string-hanger

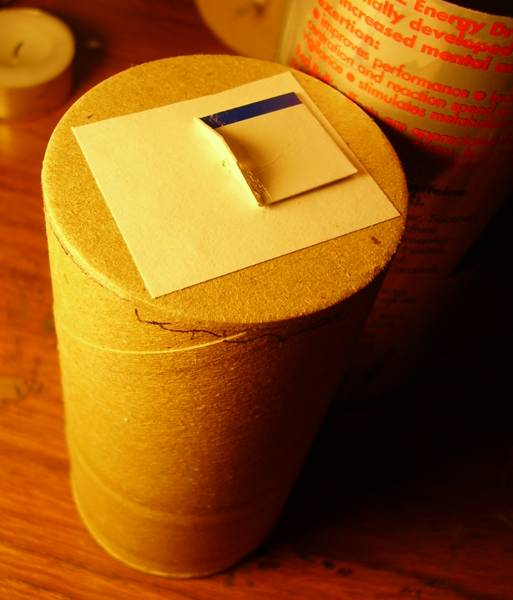

This is a much simpler displacer made from a toilet roll with the ends blanked off with two cardboard wheels

The diameter is by coincidence a loose fit in a narrow 250 ml soft drink can, it is at least twice the weight of a paper displacer but this doesn't seem to effect the motor's efficiency. It is the best combination I have yet found for making a locomotive, I used a 20mm stroke.

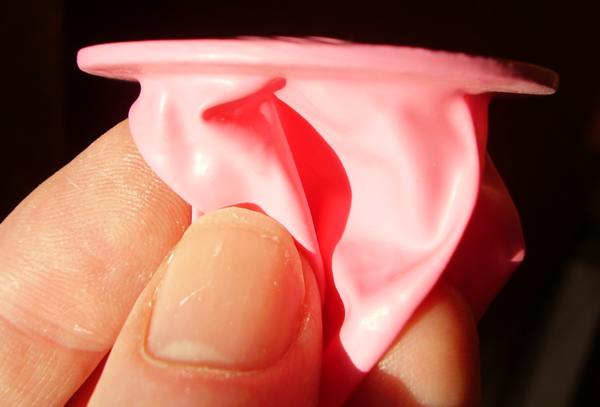

making an efficient diaphragm out of a balloon

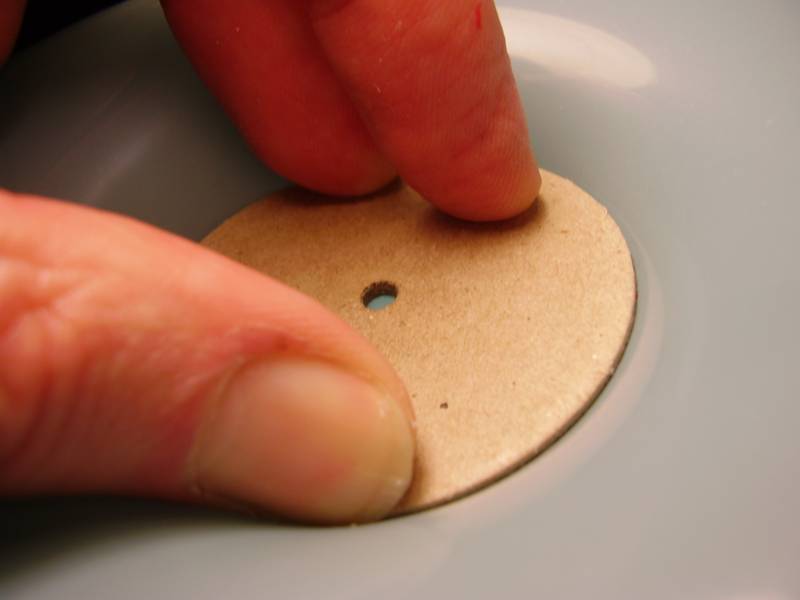

Stick cardboard disc to pole of inflated balloon with superglue,

allow balloon to deflate slowly, cut off neck of balloon

turn inside out

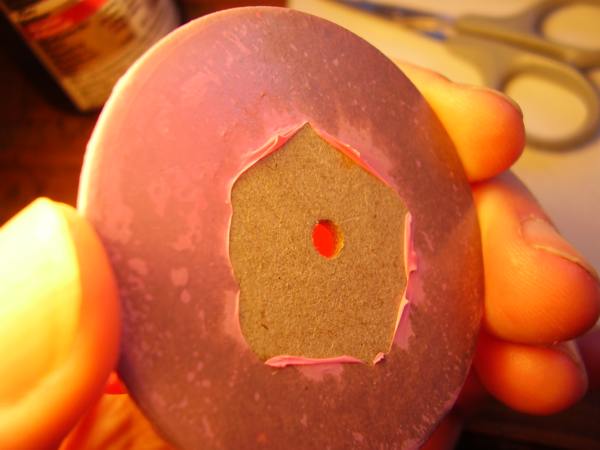

Cut away center

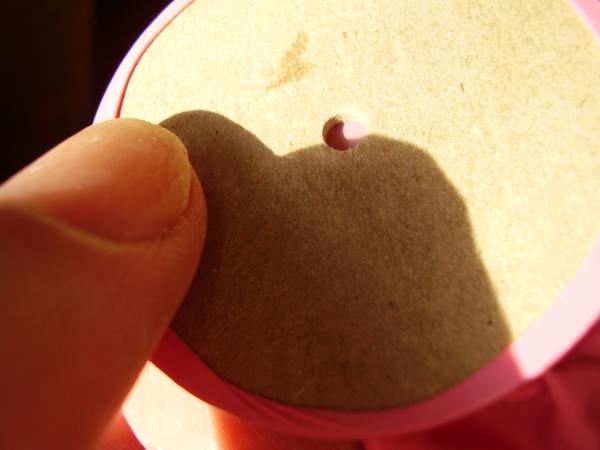

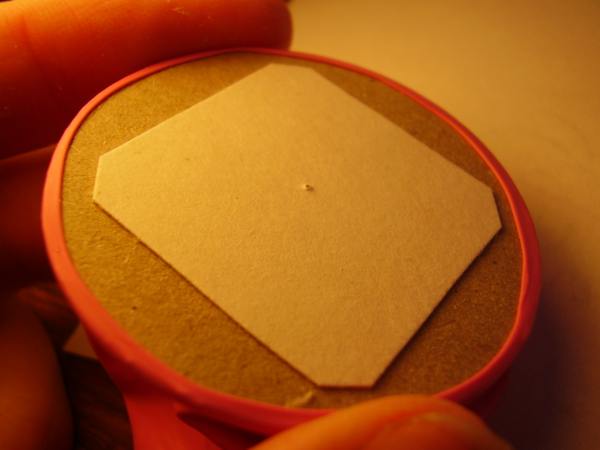

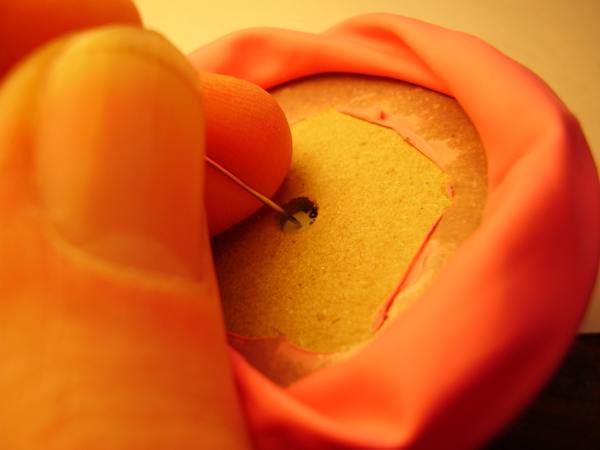

stick card square on other side, make pinhole

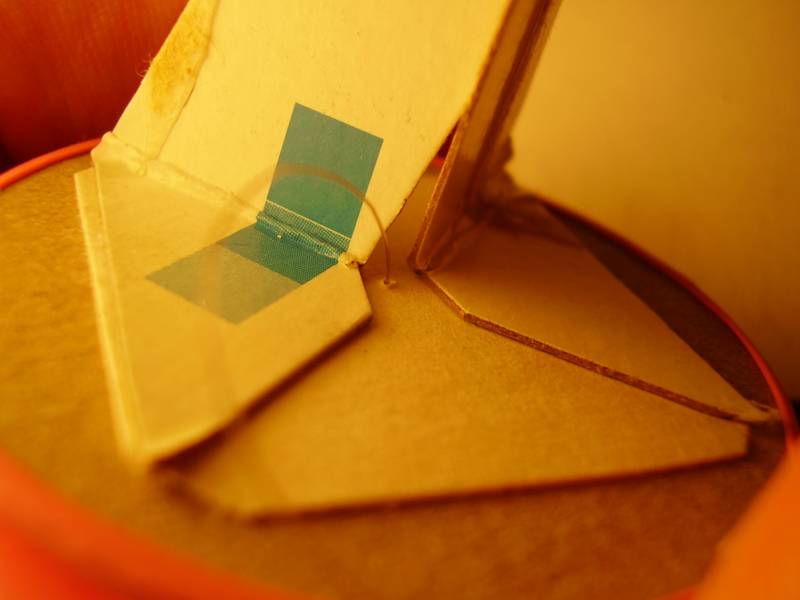

thread through pinhole, support structure for connecting rod

The tension of the latex in the diaphragm seems to effect the motor's efficiency enormously. You can adjust it by changing the length of the connecting rod or by changing the extent to which it is pulled down round the sides of the tin. A few millimeters of adjustment can make the difference between the engine running fast & it not working at all. It should just have any slackness pulled out of it so that it makes a perfect concave annular shape without having any undue tightness.
this method looks a much better bet to me although I haven't tried it yet
